Antique Hand-Built Wooden Pile Driver Instructional Model

Details

Description

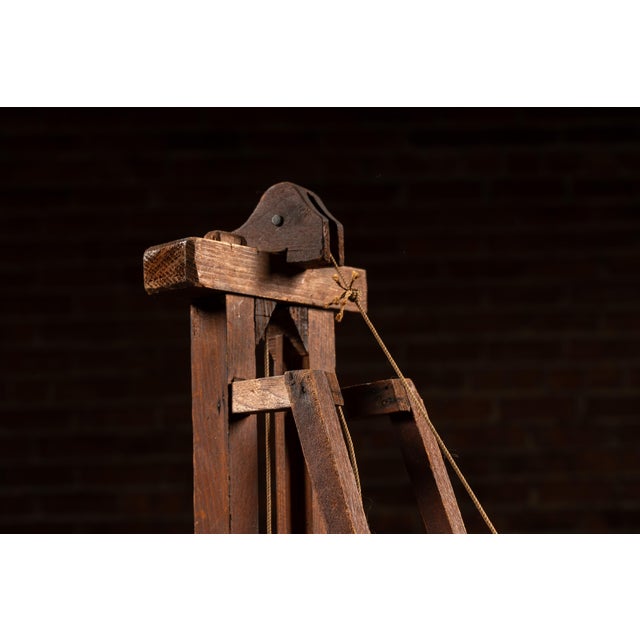

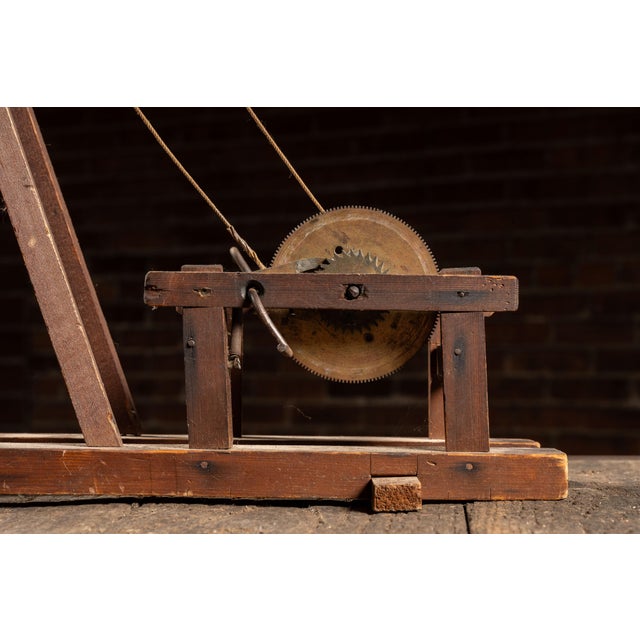

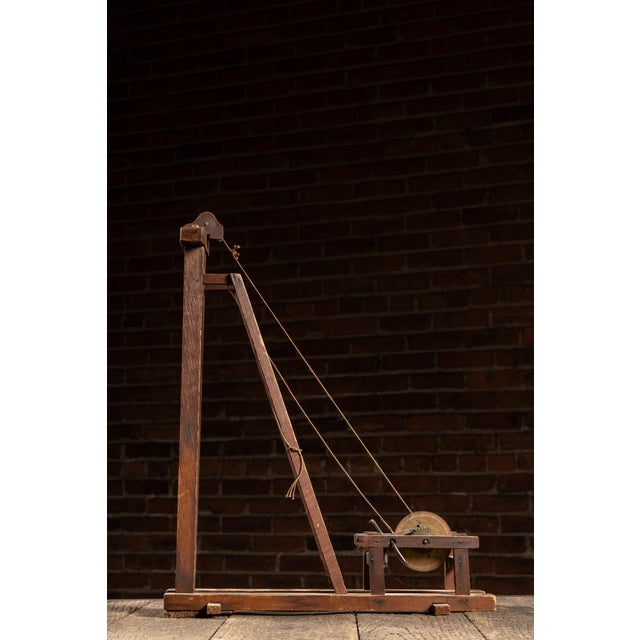

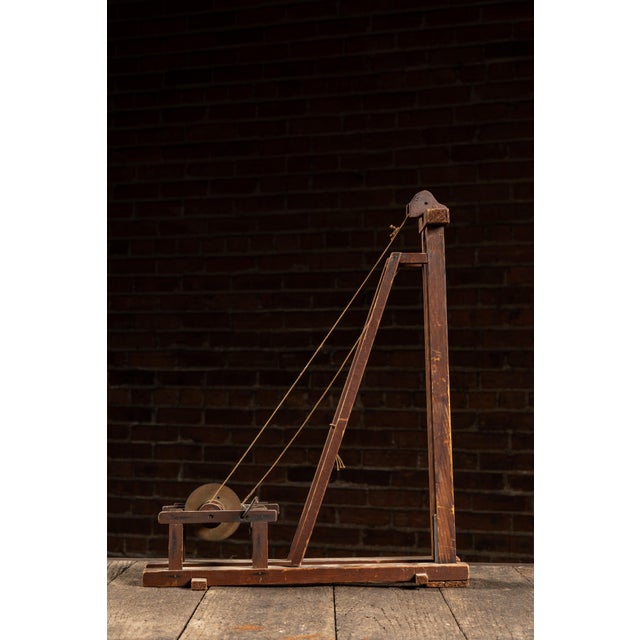

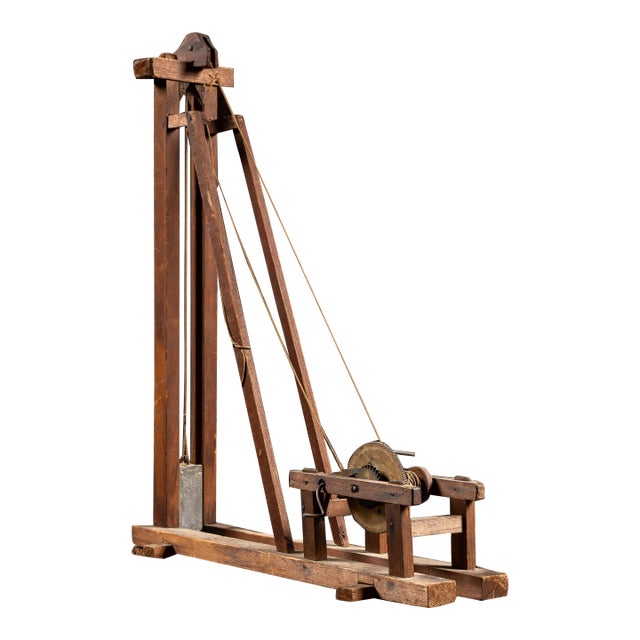

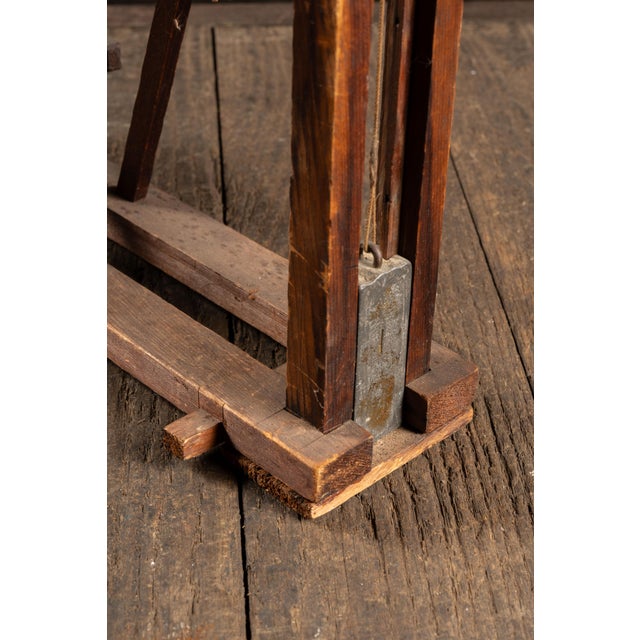

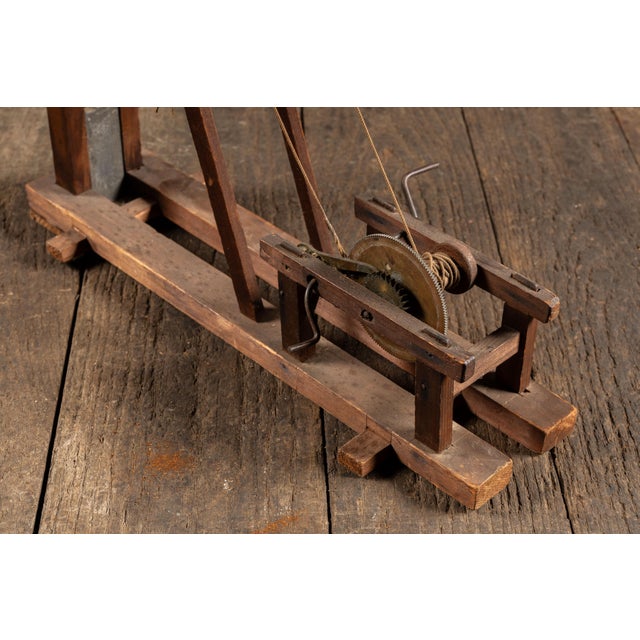

Hand-built wooden model representing a pile driver-type construction machine, featuring a vertical timber tower, pulley system, rope, counterweight, and a … Read more Hand-built wooden model representing a pile driver-type construction machine, featuring a vertical timber tower, pulley system, rope, counterweight, and a hand-cranked geared winch mounted on a sled-style base. When the crank is turned, the mechanism raises the weighted hammer, clearly illustrating the basic operating principles of pile driving and gravity-driven impact. All components are left exposed, emphasizing mechanical clarity and function-over-form construction. The scale, materials, and simplified execution are consistent with salesman samples or technical teaching models intended to demonstrate industrial machinery concepts to buyers, students, or trainees rather than to serve as a patent submission.

During the late 19th and early 20th centuries, construction equipment manufacturers and educators commonly relied on hand-built wooden models like this to explain complex mechanical systems before widespread photographic manuals and standardized training materials were available. See less
