Early Patent Model Cable Car Grip by Chicago Model Works

Details

Description

c. 1890s/1900s; Chicago Model Works - Chicago, IL

Miniature mechanical demonstration model of a cable car grip mechanism, built to … Read more c. 1890s/1900s; Chicago Model Works - Chicago, IL

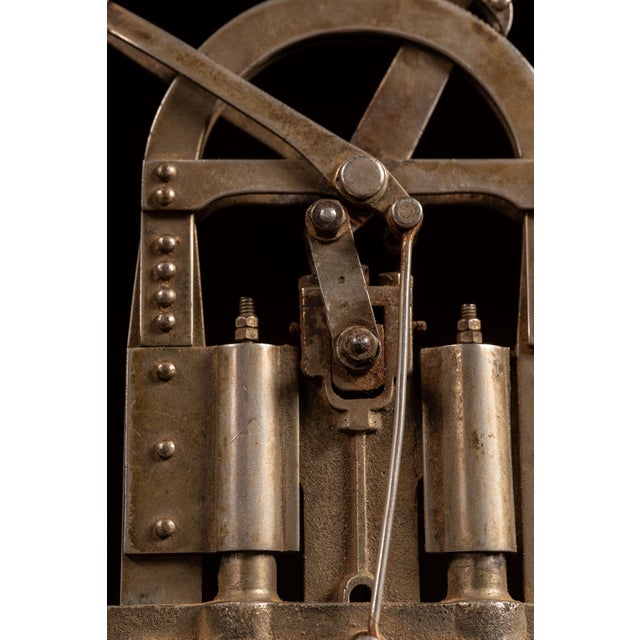

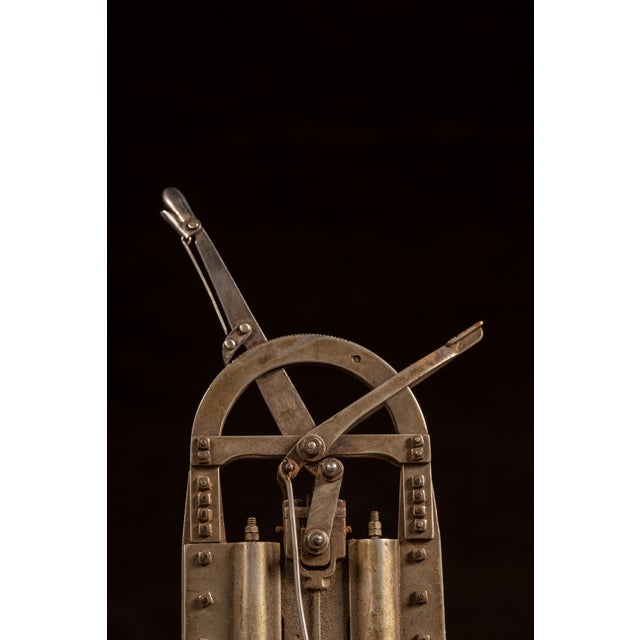

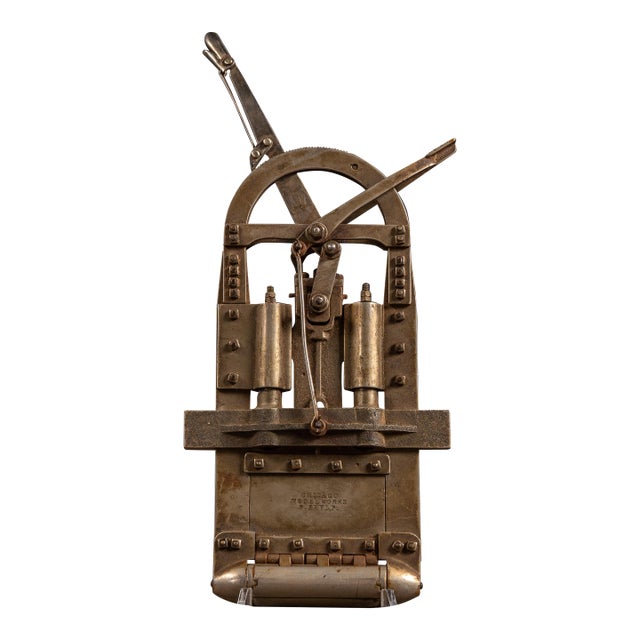

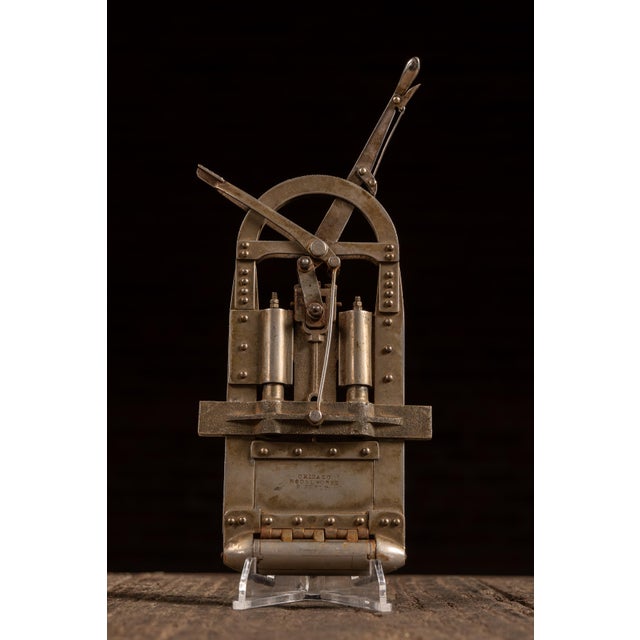

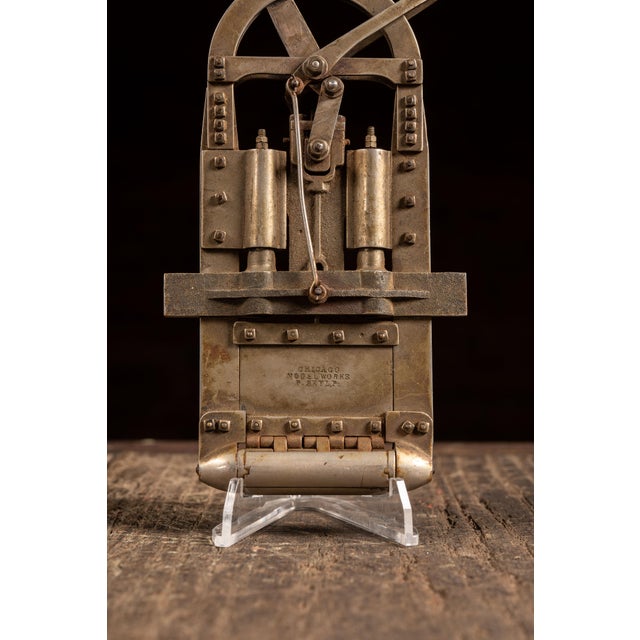

Miniature mechanical demonstration model of a cable car grip mechanism, built to illustrate the function of the clamping system used in early cable transit. The riveted metal frame houses a lever-actuated linkage that drives a central gripping assembly, mimicking the action of full-scale grips used to seize and release a continuously moving underground cable. Dual cylindrical housings flank the central plunger, while the arched top frame and pivoting handle translate hand force into controlled compression-essentially a scaled, working explanation of how gripmen controlled speed and motion. The open construction exposes every moving part, emphasizing clarity of function over finish, exactly as intended for patent review or sales demonstration.

Chicago Model Works produced finely detailed mechanical patent models for inventors, translating complex industrial systems-like cable transit technology-into tangible, functional miniatures during the late 19th and early 20th centuries. See less
